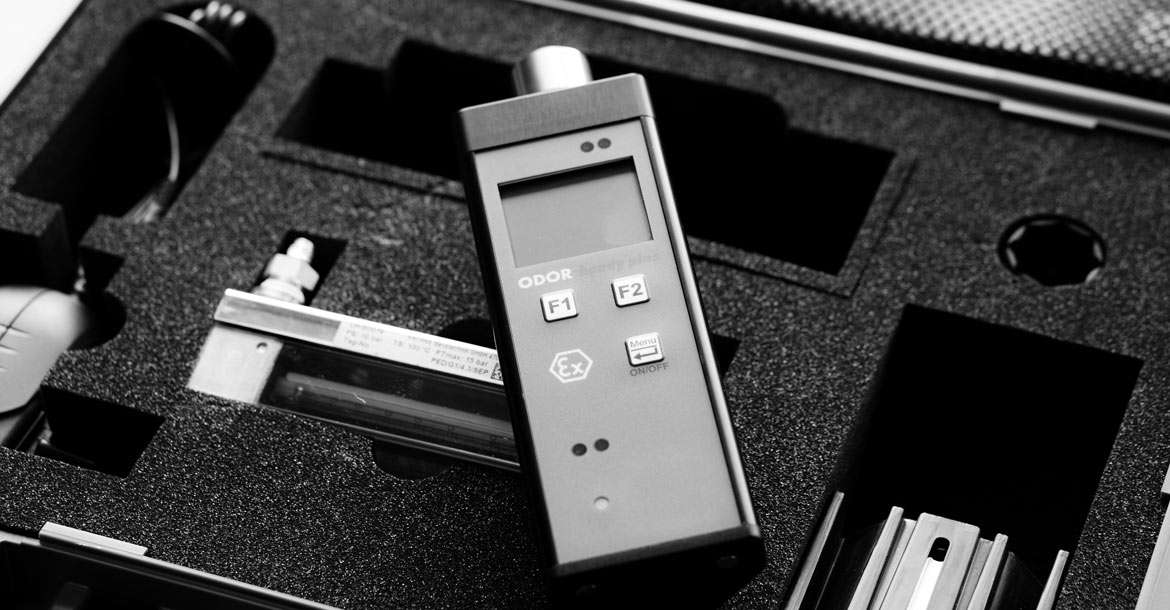

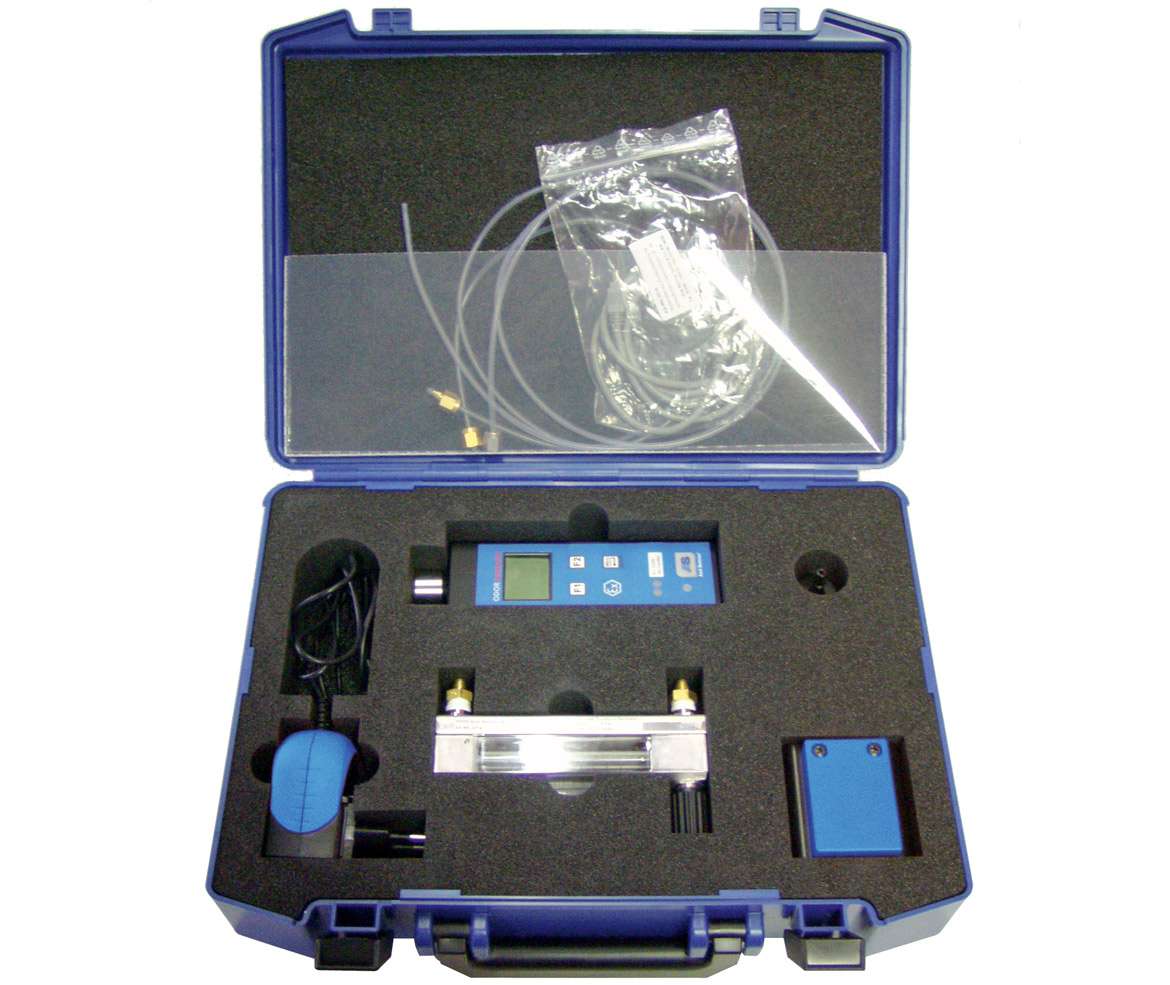

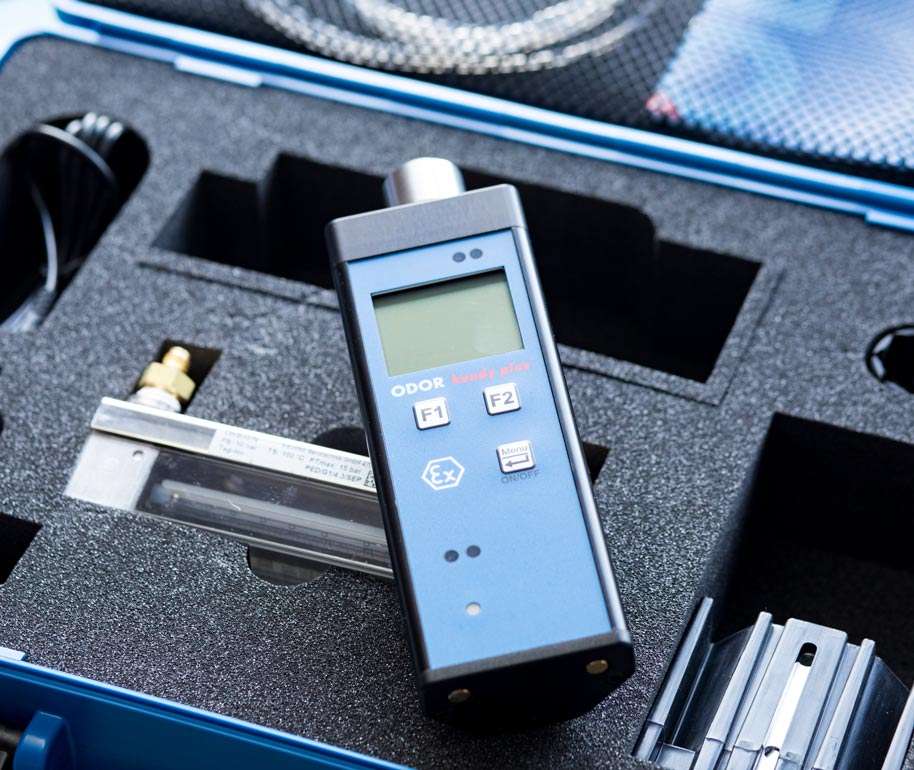

ODOR handy plus

Modern hand-held measuring instrument for quick and easy measurement of THT or mercaptan

The ODOR handy plus is based on more than 35 years of experience with hand-held odorization control devices for natural gas. It is optionally equipped with an electrochemical sensor for measuring THT or mercaptan concentrations in natural gas and combines proven sensor technology with state-of-the-art device control and easy handling.

Safe, fast and easy measurement of THT or mercaptans

Selective sensors, clear menu navigation with function keys, data memory for data archiving, infrared interfaces for data transmission - the ODOR handy plus impresses with its state-of-the-art technology and simple handling.

The sample gas is fed directly to the ODOR handy plus via a flexible measuring hose. Depending on the odorant, the concentration of the odorant is displayed after only 1-2 minutes. The result can be read off directly in mg/m³. Other units can be set by the software. The measured data are stored with indication of the measuring point, date and time as well as a note on odour perception and can be called up at any time or transmitted to a data station via the infrared interface.

In addition to the measuring function, the ODOR handy plus has a permanent monitoring function of the room air. Information such as memory capacity, serial number, date or time can be called up via the device software. A clear and unambiguous menu navigation ensures that, for example, necessary equilibration times of the sensor are maintained.

The ODOR handy plus offers the following functions:

  • Measuring function for THT or mercaptans - with different electrochemical sensors
  • Permanent room monitoring function for odorants with free input of the maximum room concentration as a limit for the optical and acoustic alarm devices
  • Optical and acoustic alarms when limit values are exceeded
  • Automatic compliance with necessary equilibration times for the sensor
  • Simple electronic zero setting
  • Clear four-line display, device software with modern menu navigation, simple function keys and clear user guidance
  • Data memory for 254 measuring points with automatic storage of measured value, measuring point, date, time and warning odor yes/no
  • Archiving software
  • USB interface on the charging station for fast, easy and secure data transfer to a PC
  • Battery charge level indicator

You can find our video on how to operate the device here.
